Replicating into Oracle Autonomous Data Warehouse(ADWC) with Heterogeneous database

Introduction

In this lab, you will take a look at how to set up replication from MySQL DB to Oracle Autonomous Data warehouse(ADWC) using Classic Goldengate for MySQL and Goldengate Microservices architecture.

This lab supports the following use cases:

• Setting up GoldenGate for MySQL.
• Setting up Replication in GoldenGate Microservices architecture for Oracle ADW (OGGMSALABX.* , where X is your participant ID assigned at the beging of the workshop).

Objectives

Create a classic GoldenGate architecture capture process (Extract) for MySQL and a Microservices delivery process (non-Integrated Replicat) to receive the data to Oracle Autonomous Datawarehouse. While MySQL isn’t supported as a deployment option for Microservices yet, you can still connect classic GoldenGate instances for MySQL to Microservices GoldenGate instances to replicate data.

Please Note: Lab 1 and Lab2 are pre-requsite to complete for this Lab

Required Artifacts

STEP 1: Create Replication Environment

This step sets up a clean GoldenGate Microservices source and target configuration. This script will take a couple of minutes to complete.

• Open up a terminal window and change directory to Lab91 and run the script build_all.sh.

          [oracle@OGG181DB183 ~]$ cd ~/OGG181_WHKSHP/Lab91/
          [oracle@OGG181DB183 Lab91]$ ./build_all.sh


• Make sure the target Schema is clear , run the command “reset_ADWC.sh X”. Where X is your participant ID that was assigned during Lab. If the participant number was 1 then enter the following

          [oracle@OGG181DB183 Lab91]$ cd /home/oracle/OGG181_WHKSHP/Lab91/Reset/db/
          [oracle@OGG181DB183 db]$ ./reset_ADWC.sh 1
          1

          SQL*Plus: Release 18.0.0.0.0 - Production on Fri Mar 29 06:50:59 2019
          Version 18.3.0.0.0

          Copyright (c) 1982, 2018, Oracle.  All rights reserved.

          Last Successful login time: Fri Mar 29 2019 06:30:49 +00:00

          Connected to:
          Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
          Version 18.4.0.0.0

          SQL> SQL>
          Table truncated.

          SQL>
          Table truncated.

          SQL>
          Table truncated.

          SQL>
          Table truncated.

          SQL>
          Table truncated.

          SQL>
          Table truncated.

          SQL>
          Table truncated.

          SQL> Disconnected from Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
          Version 18.4.0.0.0
          Truncated Target tables
          [oracle@OGG181DB183 db]$


• This script performs the following:

            1.	Deletes any existing deployments, which will remove any current lab setups.

            2.	Creates the target deployments for this lab (SanFran).

            3.	Creates new credentials for the deployment.

            4.	Adds checkpoint table for the database.


STEP 2: MySQL Setup

GoldenGate for MySQL is already installed on the Ravello image. You will be using another terminal session to run the MySQL transactions and GoldenGate processes

• Open a new Terminal window from the VNC Console.

• Sudo into the root user and when Prompted use the password ‘Welcome1’

   oracle@OGG181DB183 ~]$ sudo su - root
  [sudo] password for oracle:
  Last login: Thu Feb 14 18:10:24 UTC 2019 on pts/1
  Last failed login: Thu Feb 14 18:12:02 UTC 2019 from 73.163.148.213 on ssh:notty
  There were 6 failed login attempts since the last successful login.


• Change to the MySQL GG home.

  [root@OGG181DB183 ~]# cd /opt/app/oracle/product/18.1.0_GGMySQL


• Run the GoldenGate command interpreter (GGSCI).

  [root@OGG181DB183 18.1.0_GGMySQL]# ./ggsci

  Oracle GoldenGate Command Interpreter for MySQL
  Version 18.1.0.0.0 OGGCORE_18.1.0.0.0_PLATFORMS_180928.0432
  Linux, x64, 64bit (optimized), MySQL Enterprise on Sep 28 2018 19:34:16
  Operating system character set identified as UTF-8.

  Copyright (C) 1995, 2018, Oracle and/or its affiliates. All rights reserved.


• Start the manager and check with info all command

  GGSCI (OGG181DB183) 1> start mgr
  Manager started.


  GGSCI (OGG181DB183) 2> info all

  Program     Status      Group       Lag at Chkpt  Time Since Chkpt

  MANAGER     RUNNING


  GGSCI (OGG181DB183) 2> info all

  Program     Status      Group       Lag at Chkpt  Time Since Chkpt

  MANAGER     RUNNING


• Run the OGG obey script to create the replication processes and check with info all command

   GGSCI (OGG181DB183) 3> obey ./dirprm/setup_mysql.oby Output will as below :

  GGSCI (OGG181DB183) 3> obey ./dirprm/setup_mysql.oby

  GGSCI (OGG181DB183) 4> -- This is a script(oby) file that executes GGSCI commands to initialize the GoldenGate environment. These commands can be run individually directly via the GGSCI interface.

  GGSCI (OGG181DB183) 5>

  GGSCI (OGG181DB183) 5> -- CREATE THE CHANGE DATA CAPTURE EXTRACT,  AND LOCAL EXTRACT TRAIL OF 50MB

  GGSCI (OGG181DB183) 6>

  GGSCI (OGG181DB183) 6> -- -- Add the E_MYSQL extract. This reads the mysql binary transaction logs directly. This command creates the extract checkpoint file. VAM indicates use of a Vendor Access Module to interface with the logs. BEGIN NOW captures any transactions from the redo log that are opened after this command is issued

  GGSCI (OGG181DB183) 7>

  GGSCI (OGG181DB183) 7> ADD EXTRACT E_MYSQL, VAM, BEGIN NOW

  EXTRACT added.


  GGSCI (OGG181DB183) 8>

  GGSCI (OGG181DB183) 8> ADD EXTTRAIL ./dirdat/eo, EXTRACT E_MYSQL, MEGABYTES 50

  EXTTRAIL added.

  GGSCI (OGG181DB183) 9>

  GGSCI (OGG181DB183) 9> ADD EXTRACT P_ORA18C, EXTTRAILSOURCE ./dirdat/eo

  EXTRACT added.


  GGSCI (OGG181DB183) 10>

  GGSCI (OGG181DB183) 10> ADD RMTTRAIL rt, EXTRACT P_ORA18C, MEGABYTES 50

  RMTTRAIL added.


• Check if the Extract and Pump processes have been added with “info all” as below :

  GGSCI (OGG181DB183) 11> info all

  Program     Status      Group       Lag at Chkpt  Time Since Chkpt

  MANAGER     RUNNING
  EXTRACT     STOPPED     E_MYSQL     00:00:00      00:02:57
  EXTRACT     STOPPED     P_ORA18C    00:00:00      00:02:55


STEP 3: Setup Microservices Target

We will use the web UI for the Administration Service of the SanFran Deployment (http://hostname:17001).

• Open a new browser tab and connect to http://hostname:17001

• Login with the following oggadmin/Welcome1

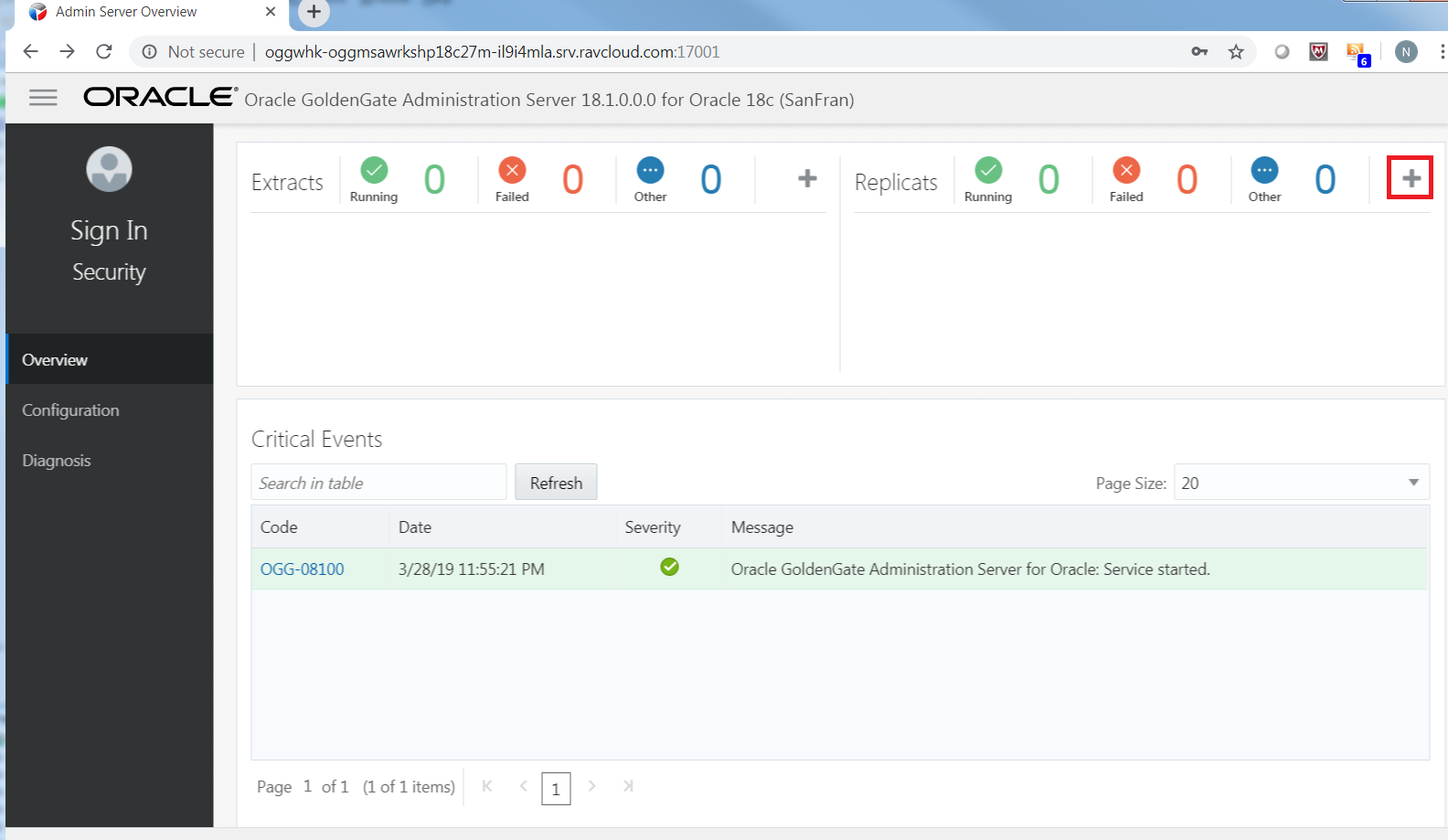

• On the Overview page click the plus sign (+) opposite the Replicat status.

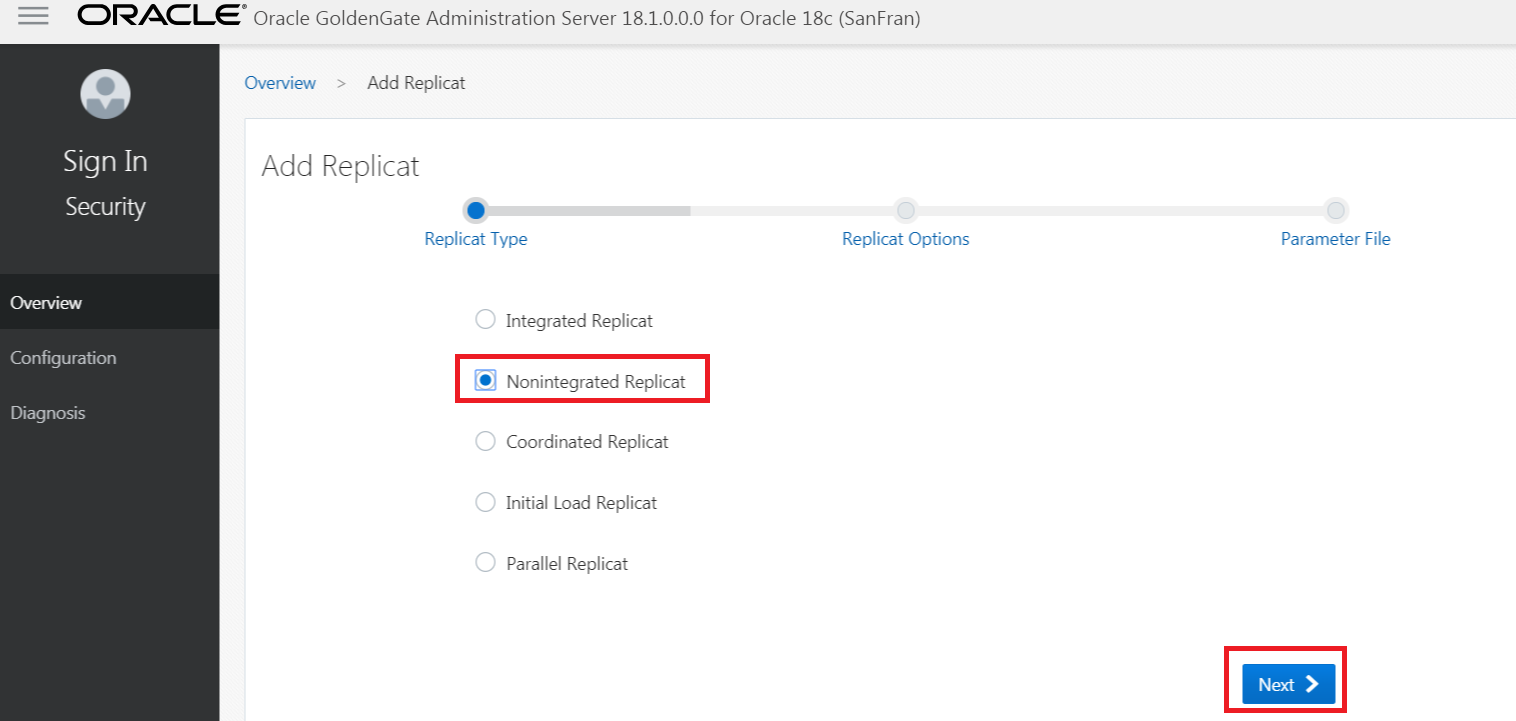

• On the next page click “Next” to create an Nonintegrated Replicat.

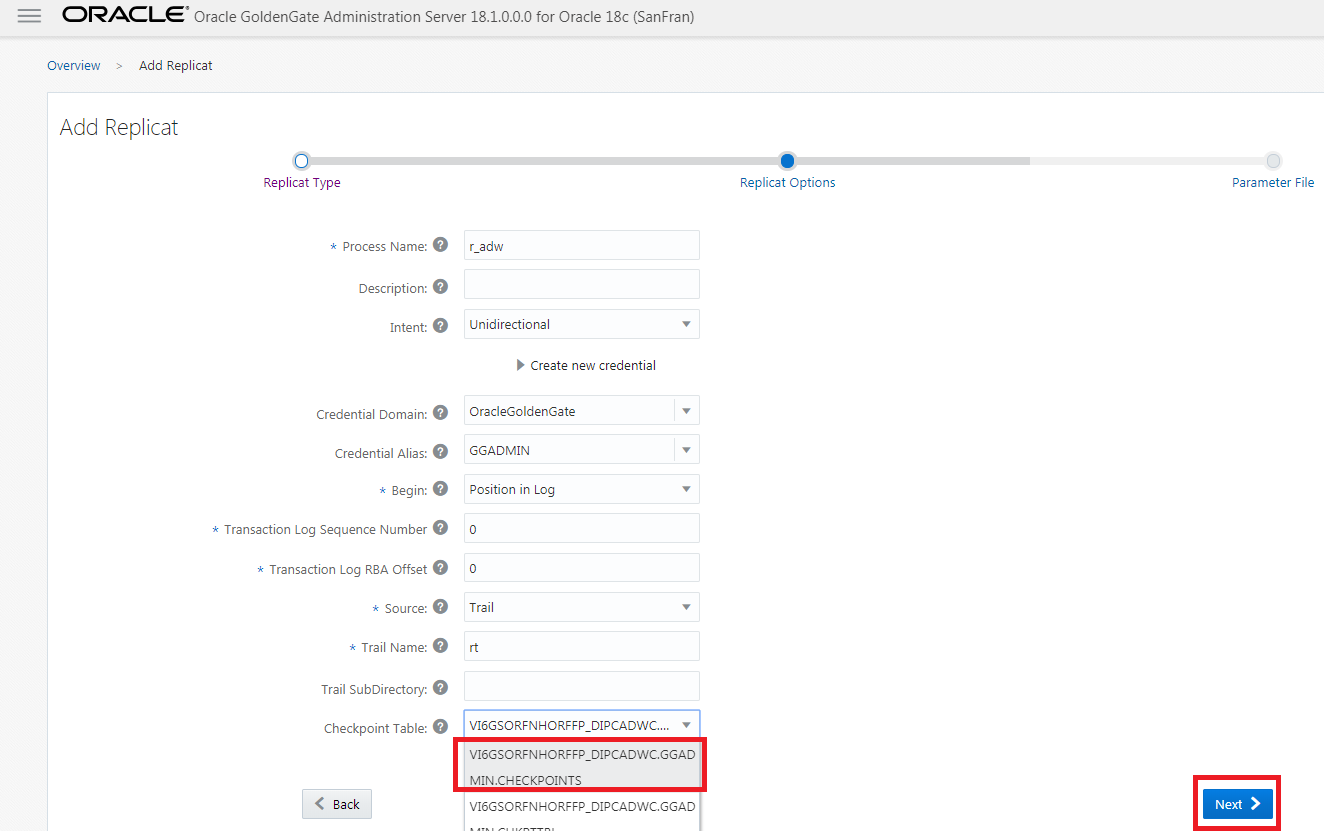

• Fill in the required parameters (See Screenshot). Then click “Next”.

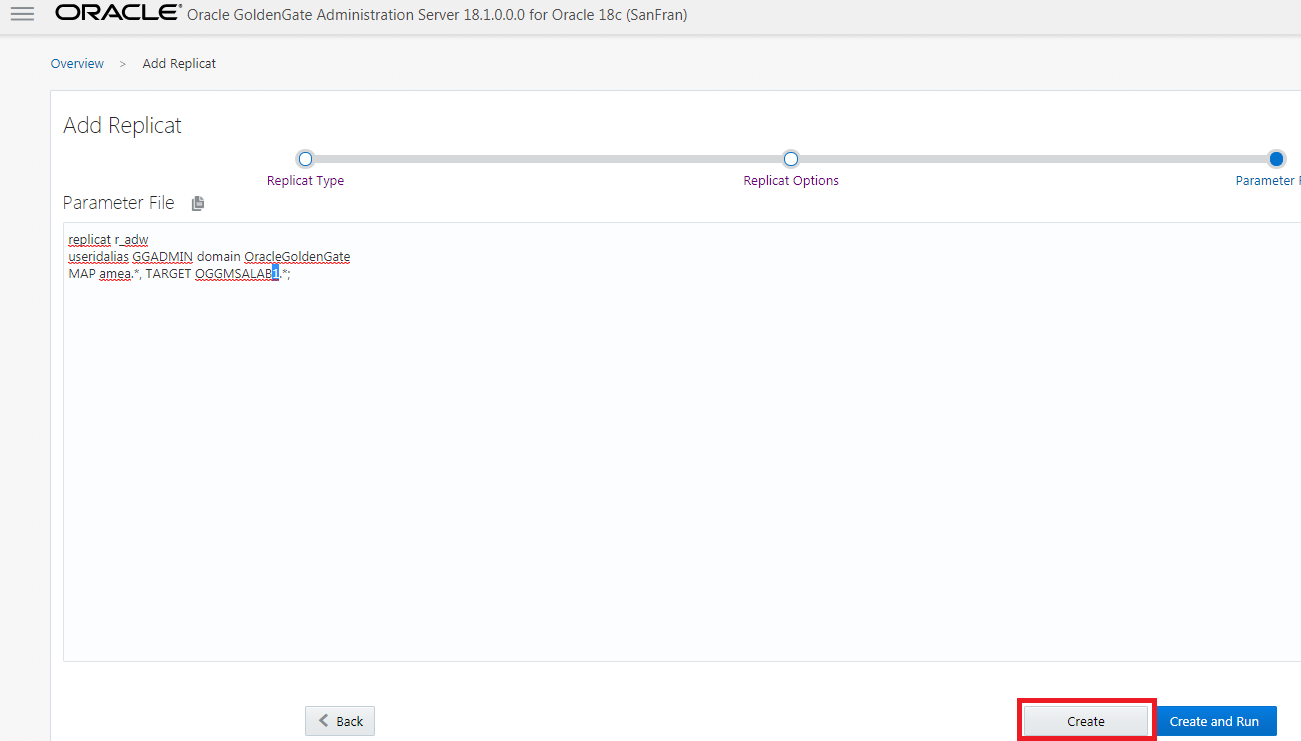

• The next page will show the parameter file. Delete the “Map., TARGET .;” statement and add the following “MAP amea., TARGET OGGMSALABX.;”. Where X is equal to you partcipant id which as assigned to you.

            -- MAP *.*, TARGET *.*;
            MAP amea.*, TARGET OGGMSALAB**X**.*;


• Click “Create”.

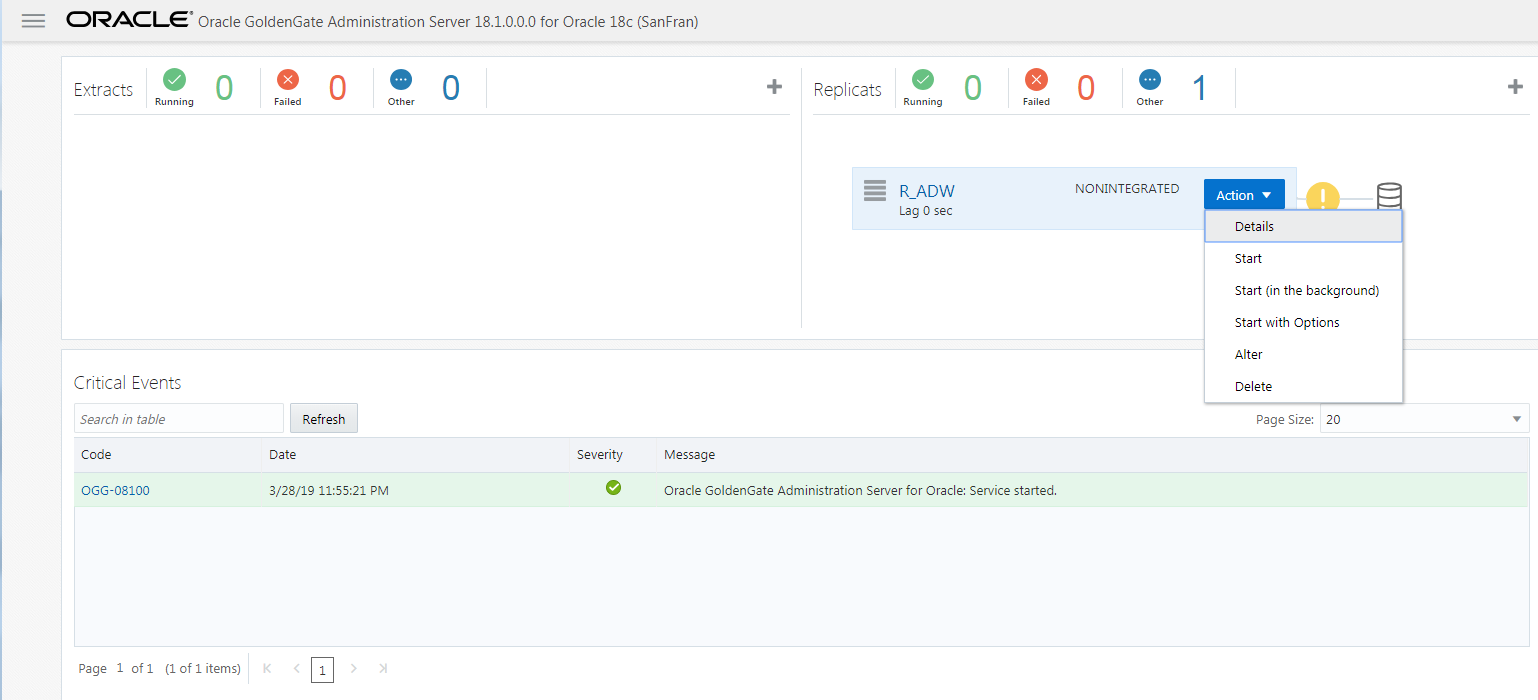

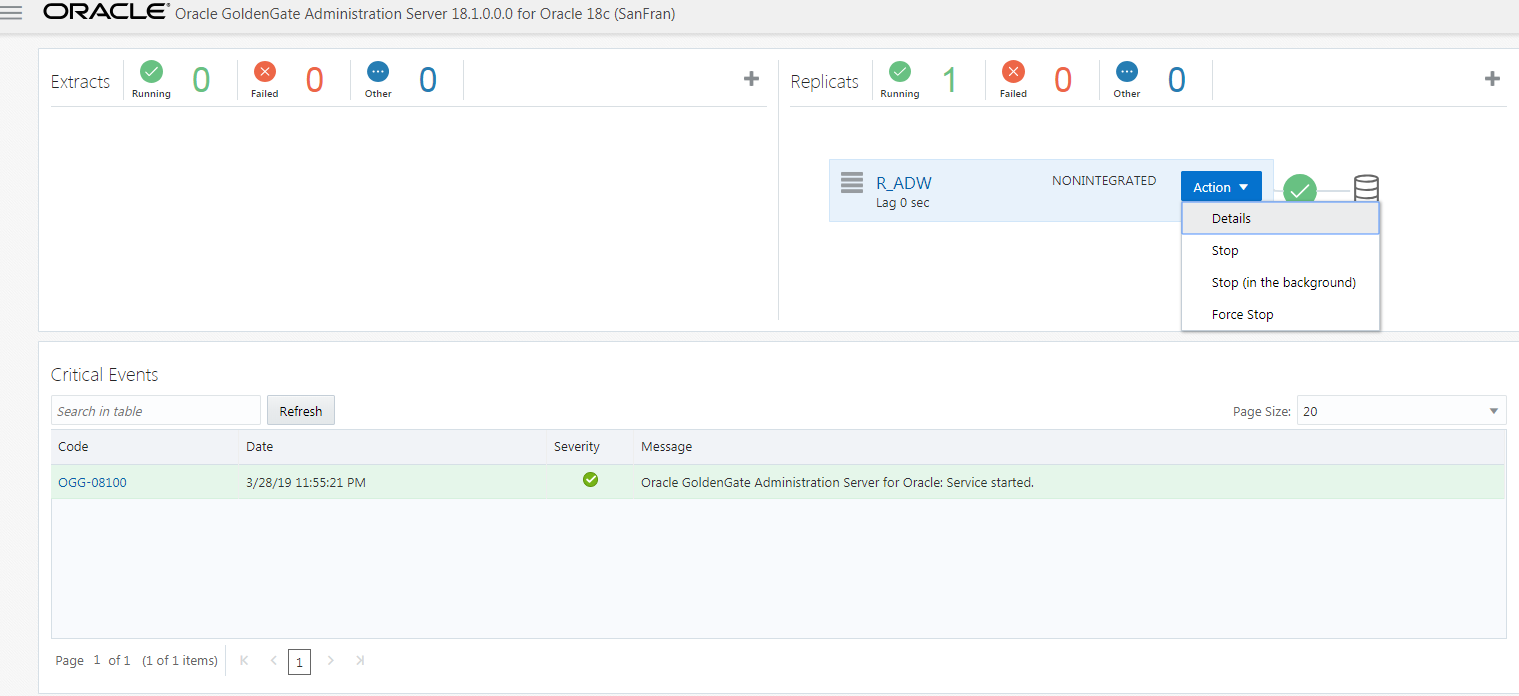

• The delivery process is created. Now click on the Action drop down and select “Start”.

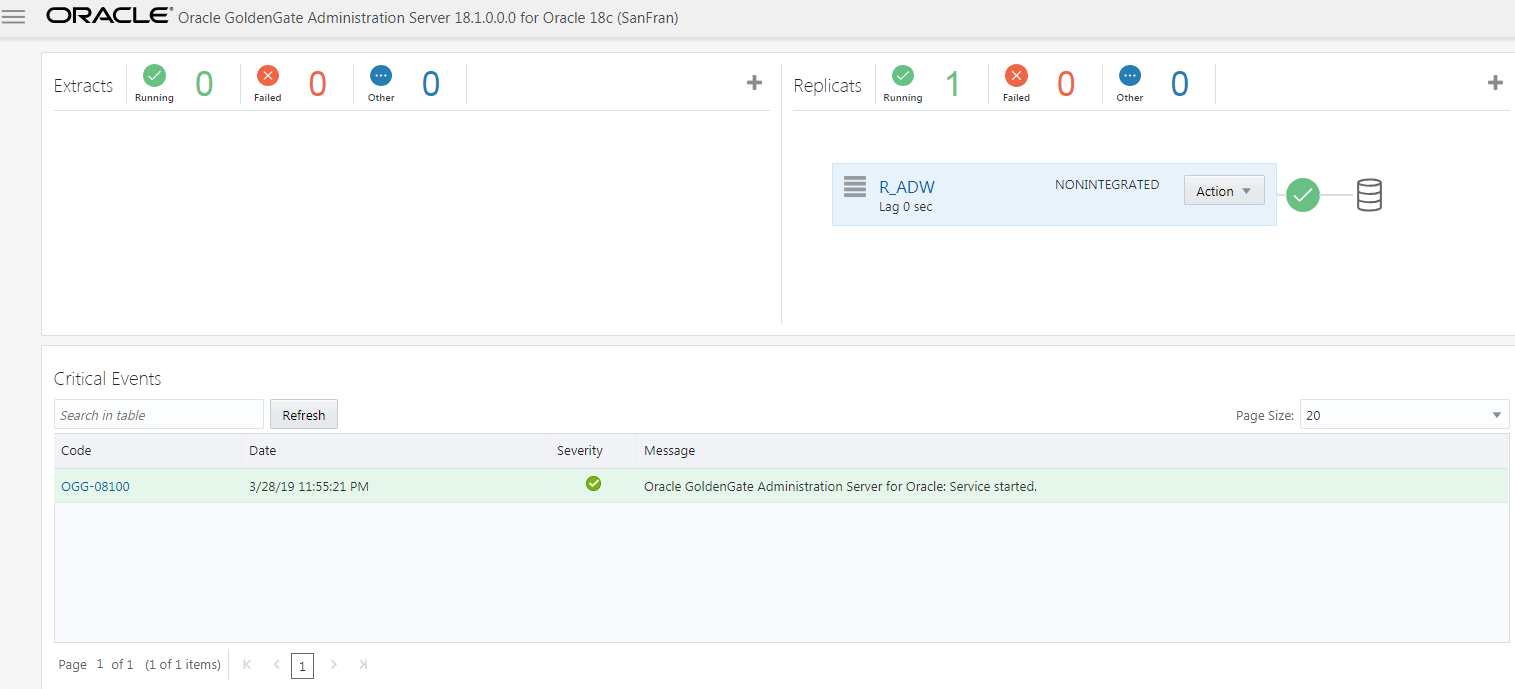

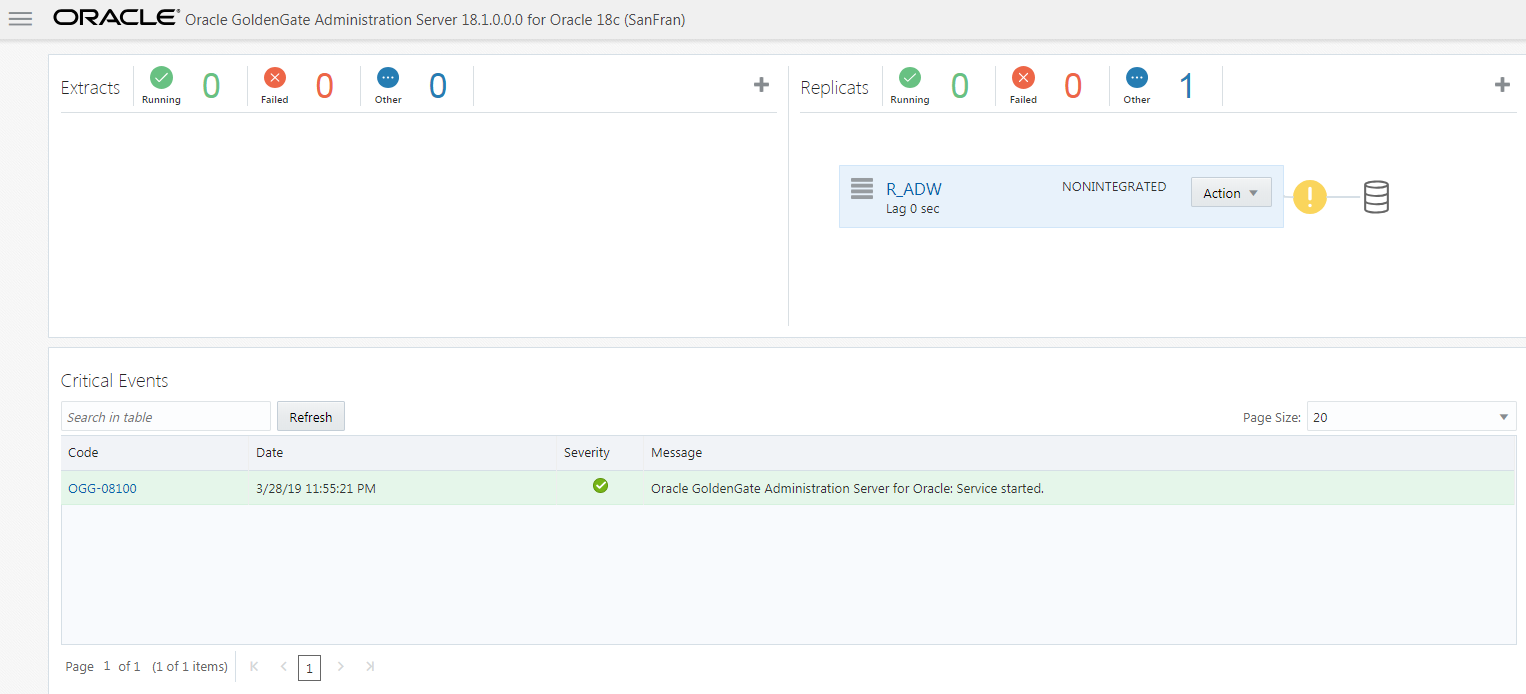

• The replicat will be running , It might fail if you have not started the Pump process on the MySQL side

STEP 4: Loading Data and validating the setup

• If not already done, Open a new Terminal window from the VNC Console.

• Sudo into the root user and when Prompted use the password ‘Welcome1’

  [oracle@OGG181DB183 ~]$ sudo su - root
  [sudo] password for oracle:
  Last login: Thu Feb 14 18:10:24 UTC 2019 on pts/1
  Last failed login: Thu Feb 14 18:12:02 UTC 2019 from 73.163.148.213 on ssh:notty
  There were 6 failed login attempts since the last successful login.


• Change to the MySQL GG home.

  [root@OGG181DB183 ~]# cd /opt/app/oracle/product/18.1.0_GGMySQL


• Run the GoldenGate command interpreter (GGSCI).

  [root@OGG181DB183 18.1.0_GGMySQL]# ./ggsci

  Oracle GoldenGate Command Interpreter for MySQL
  Version 18.1.0.0.0 OGGCORE_18.1.0.0.0_PLATFORMS_180928.0432
  Linux, x64, 64bit (optimized), MySQL Enterprise on Sep 28 2018 19:34:16
  Operating system character set identified as UTF-8.

  Copyright (C) 1995, 2018, Oracle and/or its affiliates. All rights reserved.


• Start MySQL Goldengate Extract and Pump processes in the terminal

  GGSCI (OGG181DB183) 12> start *

   Sending START request to MANAGER ...
   EXTRACT E_MYSQL starting

   Sending START request to MANAGER ...
   EXTRACT P_ORA18C starting

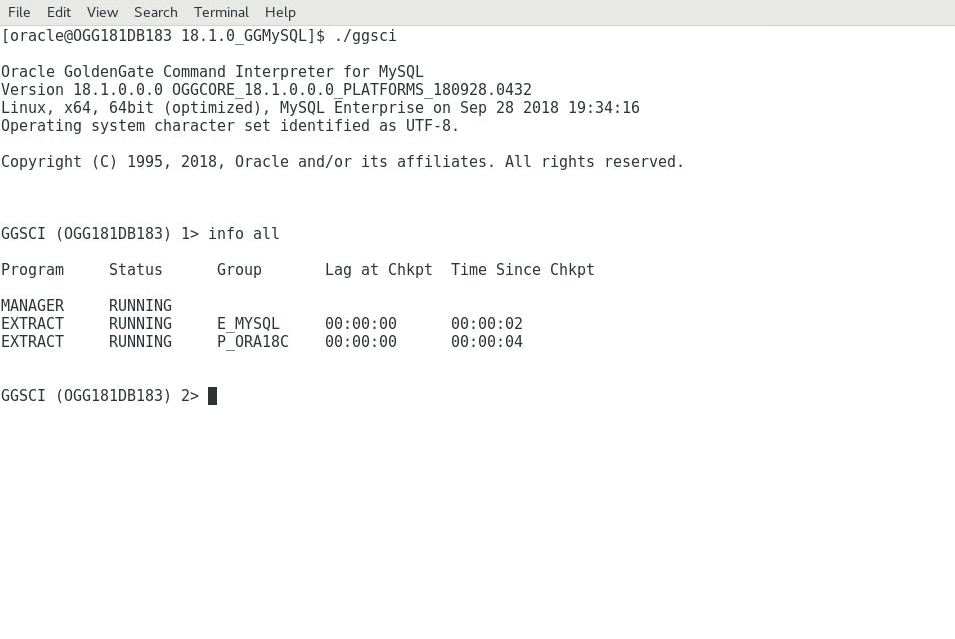

   GGSCI (OGG181DB183) 1> info all

   Program     Status      Group       Lag at Chkpt  Time Since Chkpt

   MANAGER     RUNNING
   EXTRACT     RUNNING     E_MYSQL     00:00:01      00:00:06
   EXTRACT     RUNNING     P_ORA18C    00:00:00      00:00:06

   GGSCI (OGG181DB183) 2>


• To go terminal and change directory to “/home/oracle/OGG181_WHKSHP/Lab91/MySQL/dirsql”

  [oracle@OGG181DB183 ~]$ cd  /home/oracle/OGG181_WHKSHP/Lab91/MySQL/dirsql
  [oracle@OGG181DB183 dirsql]$ ls
  counts.sql  drop_database.sql  seed_database.sql  source_database.sql


• Log in into mysql database using username “root” and password “Welcome1”

   [oracle@OGG181DB183 dirsql]$ mysql -u root -p
   Enter password:
   Welcome to the MySQL monitor.  Commands end with ; or \g.
   Your MySQL connection id is 10
   Server version: 8.0.13 MySQL Community Server - GPL

   Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.

   Oracle is a registered trademark of Oracle Corporation and/or its
   affiliates. Other names may be trademarks of their respective
   owners.

   Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.


• Use “AMEA” schema

   mysql> use amea
   Reading table information for completion of table and column names
   You can turn off this feature to get a quicker startup with -A
   Database changed


• Load the data in MySQL DB with the script present at /home/oracle/OGG181_WHKSHP/Lab91/MySQL/dirsql

  mysql> source /home/oracle/OGG181_WHKSHP/Lab91/MySQL/dirsql/seed_database.sql
  Database changed
  Query OK, 0 rows affected (0.00 sec)
  Query OK, 0 rows affected (0.25 sec)
  Query OK, 0 rows affected (0.15 sec)
  Query OK, 0 rows affected (0.14 sec)
  Query OK, 0 rows affected (0.16 sec)
  Query OK, 0 rows affected (0.16 sec)
  Query OK, 0 rows affected (0.24 sec)
  Query OK, 0 rows affected (0.20 sec)
  Query OK, 1 row affected (0.02 sec)
  Query OK, 1 row affected (0.02 sec)
  Query OK, 1 row affected (0.02 sec)
  Query OK, 1 row affected (0.03 sec)
  Query OK, 1 row affected (0.02 sec)
  Query OK, 0 rows affected (0.00 sec)
  Query OK, 0 rows affected (0.06 sec)
  Query OK, 0 rows affected (0.10 sec)
  Query OK, 0 rows affected (3 min 22.93 sec)
  mysql>


• It will take couple minutes to load the data. After that We can see the statstics from GGSCI CLI

   [root@OGG181DB183 18.1.0_GGMySQL]# cd /opt/app/oracle/product/18.1.0_GGMySQL
   [root@OGG181DB183 18.1.0_GGMySQL]# ./ggsci
   Oracle GoldenGate Command Interpreter for MySQL
   Version 18.1.0.0.0 OGGCORE_18.1.0.0.0_PLATFORMS_180928.0432
   Linux, x64, 64bit (optimized), MySQL Enterprise on Sep 28 2018 19:34:16
   Operating system character set identified as UTF-8.

   Copyright (C) 1995, 2018, Oracle and/or its affiliates. All rights reserved.



   GGSCI (OGG181DB183) 2> stats E_MYSQL,TOTAL

   Sending STATS request to EXTRACT E_MYSQL ...

   Start of Statistics at 2019-03-29 06:16:08.

   Output to ./dirdat/eo:

   Extracting from amea.account to amea.account:

   *** Total statistics since 2019-03-29 06:10:43 ***
     Total inserts                   	       10000.00
     Total updates                   	           0.00
     Total deletes                   	           0.00
     Total discards                  	           0.00
     Total operations                	       10000.00

   Extracting from amea.account_trans to amea.account_trans:

   *** Total statistics since 2019-03-29 06:10:43 ***

     No database operations have been performed.

   Extracting from amea.branch to amea.branch:

   *** Total statistics since 2019-03-29 06:10:43 ***
     Total inserts                   	          40.00
     Total updates                   	           0.00
     Total deletes                   	           0.00
     Total discards                  	           0.00
     Total operations                	          40.00

   Extracting from amea.teller to amea.teller:

   *** Total statistics since 2019-03-29 06:10:43 ***
     Total inserts                   	         800.00
     Total updates                   	           0.00
     Total deletes                   	           0.00
     Total discards                  	           0.00
     Total operations                	         800.00

   Extracting from amea.teller_trans to amea.teller_trans:

   *** Total statistics since 2019-03-29 06:10:43 ***

     No database operations have been performed.

   Extracting from amea.branch_atm to amea.branch_atm:

   *** Total statistics since 2019-03-29 06:10:43 ***

     No database operations have been performed.

   Extracting from amea.trans_type to amea.trans_type:

   *** Total statistics since 2019-03-29 06:10:43 ***
     Total inserts                   	           5.00
     Total updates                   	           0.00
     Total deletes                   	           0.00
     Total discards                  	           0.00
     Total operations                	           5.00

   End of Statistics.


   GGSCI (OGG181DB183) 3>


• Below is the statstics in the Replicat side

• It will take a few mins to Sync as we are doing remote delivery in ADW over internet where the bandwidht might be the bottleneck.

You have completed lab 9100! Great Job!
